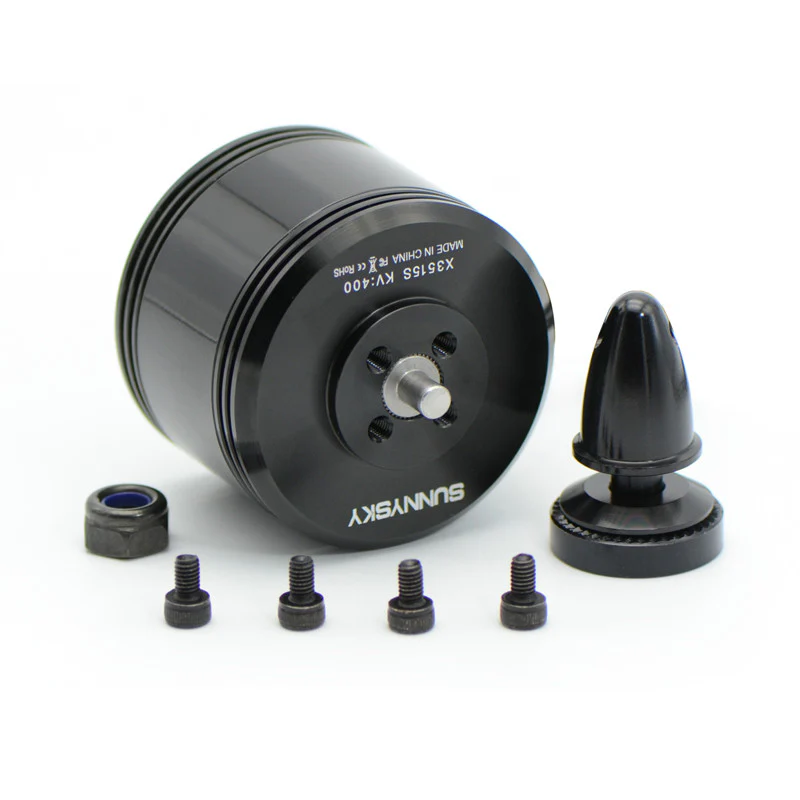

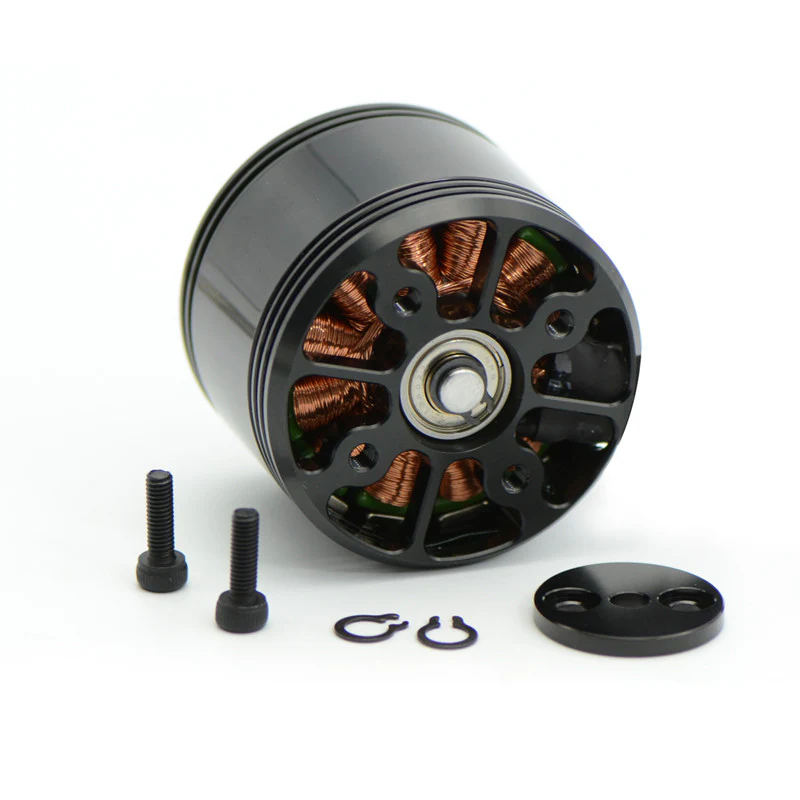

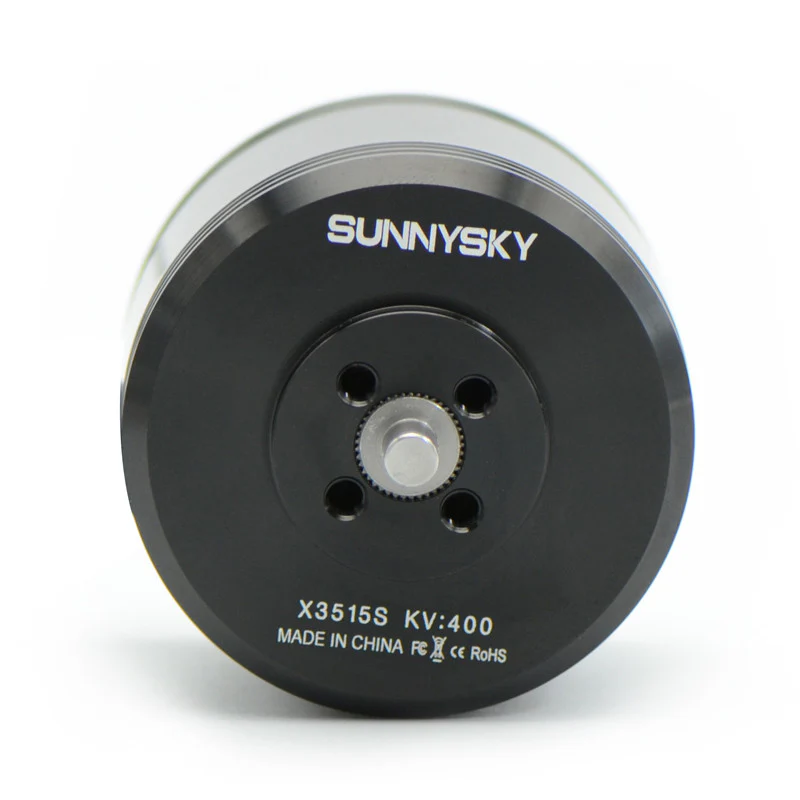

SunnySky XS High Power X3515S Brushless Motors

Description

Powerful Multirotor Motors

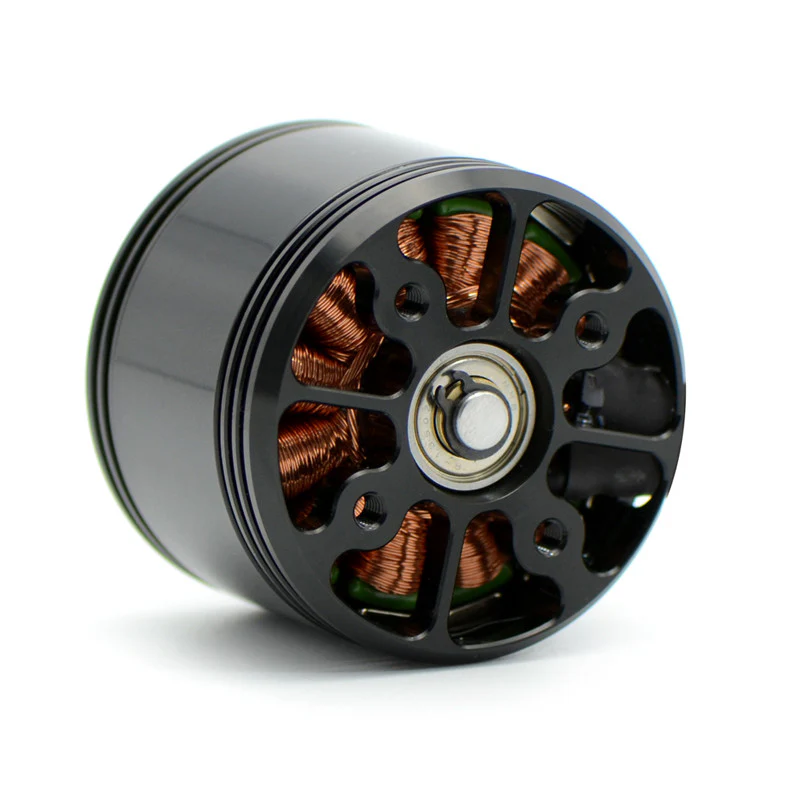

The new patented XS design combines a sleek, industrial look with superior functionality. Its semi-enclosed structure effectively prevents sand and debris from entering the motor while also enhancing ventilation and heat dissipation.

Advanced Large-Diameter EZO Bearings

Equipped with premium Japanese EZO bearings with large diameters, the XS motors ensure stable, quiet operation and long-lasting performance.

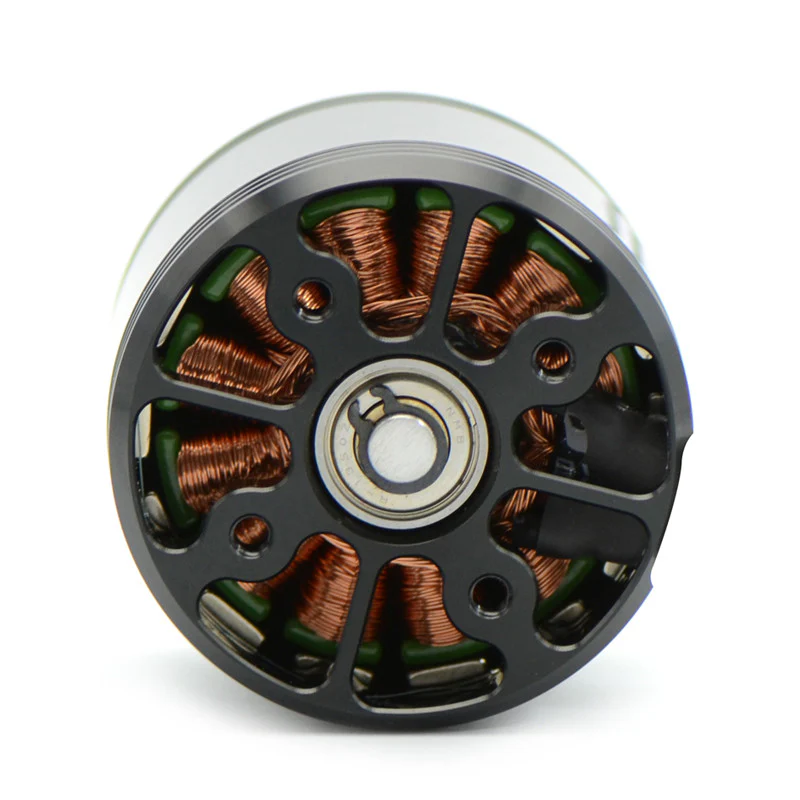

Hand-Wound Coils

Each motor features precision hand-wound coils, ensuring low internal resistance, high efficiency, and up to a 90% coil space factor. This results in increased maximum continuous power for every XS motor.

Sunnysky's Ultimate Manufacturing Technology

Built with Sunnysky’s advanced manufacturing and assembly techniques, XS motors are crafted with precision, featuring tight tolerances and minimal shaft and radial runouts. This ensures smooth and reliable operation in the air.

[TABS]OVERVIEW

KV400

No.of Stator Slots	12	Rotor Diameter	41.9mm
No.of Rotor Poles	14	Shaft Diameter	4mm
Motor Kv	400	Body Length  (Without Shaft)	35mm
No-load current	0.7A/10V	Body Length	40.5mm
Motor Resistance	115mΩ	Max Lipo Cell	6S
Max Continuous Current	35A/30s	ESC	40-60A
Max Continuous Power	875W	Recommended Prop(inch)	14*4.7/15*5.5/16*6
Weight	170g	Weight for multirotors	≤1700g



Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
14*4.7	22.2	2.1	500	46.62	10.72501073	57℃
		3.7	750	82.14	9.130752374
		5.4	1000	119.88	8.341675008
		7.3	1250	162.06	7.713192645
		9.7	1500	215.34	6.965728615
		12.3	1750	273.06	6.408847872
		14.6	2000	324.12	6.170554116
		18	2300	399.6	5.755755756
		19.9	2450	441.78	5.545746752
	25	1.9	500	47.5	10.52631579	75℃
		3.2	750	80	9.375
		4.7	1000	117.5	8.510638298
		6.6	1250	165	7.575757576
		8.5	1500	212.5	7.058823529
		10.7	1750	267.5	6.542056075
		13.2	2000	330	6.060606061
		16.3	2300	407.5	5.644171779
		19.7	2600	492.5	5.279187817
		23.8	3000	595	5.042016807
15*5.5	22.2	1.9	500	42.18	11.85395922	55℃
		3.4	750	75.48	9.936406995
		4.9	1000	108.78	9.192866336
		6.8	1250	150.96	8.280339163
		8.8	1500	195.36	7.678132678
		11.1	1750	246.42	7.101696291
		13.6	2000	301.92	6.62427133
		17.8	2400	395.16	6.07348922
	25	1.8	500	45	11.11111111	68℃
		3	750	75	10
		4.5	1000	112.5	8.888888889
		6.2	1250	155	8.064516129
		7.9	1500	197.5	7.594936709
		10	1750	250	7
		12.2	2000	305	6.557377049
		15	2300	375	6.133333333
		18.2	2600	455	5.714285714
		21.5	2920	537.5	5.43255814
16*6	22.2	2.1	500	46.62	10.72501073	78℃
		3.5	750	77.7	9.652509653
		5.1	1000	113.22	8.832361774
		6.9	1250	153.18	8.160334247
		9	1500	199.8	7.507507508
		11	1750	244.2	7.166257166
		13.2	2000	293.04	6.825006825
		16.3	2300	361.86	6.356049301
		19.6	2600	435.12	5.975363118
		24.5	3000	543.9	5.515719801
		28.6	3360	634.92	5.292005292
	25	2	500	50	10	5min 100℃
		3.2	750	80	9.375
		4.6	1000	115	8.695652174
		6.3	1250	157.5	7.936507937
		7.9	1500	197.5	7.594936709
		10	1750	250	7
		12	2000	300	6.666666667
		14.9	2300	372.5	6.174496644
		18	2600	450	5.777777778
		22.8	3000	570	5.263157895
		29.3	3500	732.5	4.778156997
		30.1	3600	752.5	4.784053156
